Sản phẩm

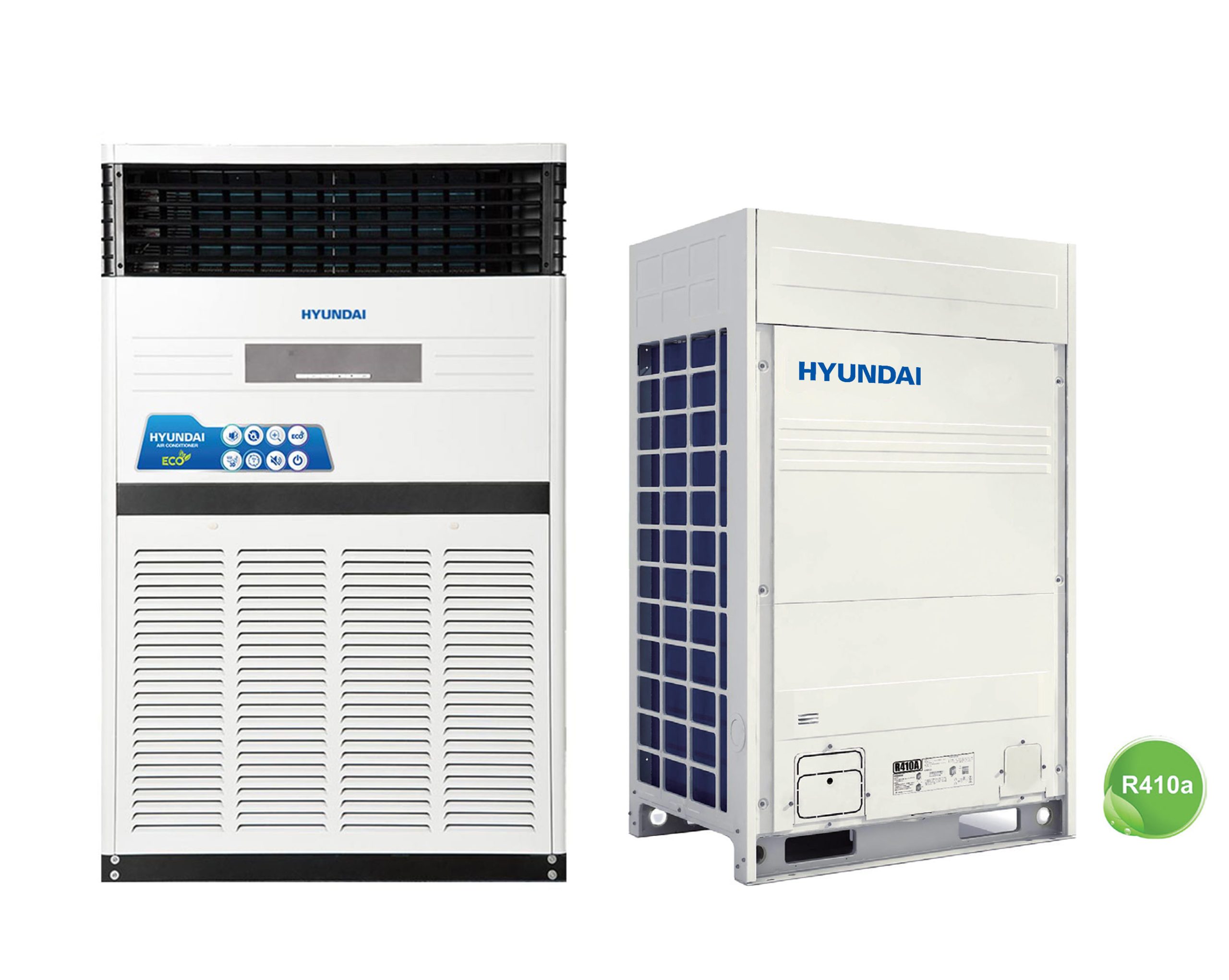

ĐIỀU HOÀ TỦ ĐỨNG LOẠI 1 CHIỀU 10HP – 100.000 BTU
-
Thương hiệu: Hyundai -
Xuất xứ: Malaysia
-
Tính năng: Lọc Bụi,
-
Nguồn điện vào: 380-415V/3PH/50Hz
-
Môi chất lạnh: R410A
| Model | HFA100CC/HOFA100C1YC | |||
| Dàn Lạnh | Power supply | V-N-Hz | 220~240V/1N/50Hz | |
| Cooling | Capacity | Btu/h | 100500 | |
| Input | W | 740 | ||
| Rated current | A | 3.5 | ||
| EER | W/W | 2.61 | ||
| Indoor fan motor | Speed(hi/mi/lo) | r/min | 600/550/450 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 4000/3600/3200 | ||
| Indoor noise level(Hi/Mi/Lo) | dB(A) | 55/50/45 | ||
| Indoor unit | Dimension (W*H*D) | Body(mm) | 1200×1850×380 | |
| Packing (W*H*D) | Body(mm) | 1260×1970×400 | ||
| Net/Gross weight | Body (Kg) | 130/143 | ||
| Dàn Nóng | Power supply | V-N-Hz | 380～415V/3N/50Hz | |
| cooling | Capacity | Btu/h | 100500 | |
| Input | W | 10000 | ||
| Rated current | A | 16.8 | ||
| Max. input consumption | W | 13600 | ||
| Max. current | A | 26.1 | ||
| Starting current | A | 72 | ||
| Outdoor air flow | m3/h | 12000 | ||
| Outdoor noise level | dB(A) | 63 | ||
| Outdoor unit | Dimension(W*H*D) | mm | 974*1618*766 | |
| Packing (W*H*D) | mm | 1030*1750*825 | ||
| Net/Gross weight | kg | 194/200 | ||
| Refrigerant type | R410A | |||
| Max pressure | MPa | 4.5 | ||
| Refrigerant piping | Liquid side/ Gas side | mm | 2×（Φ9.52/Φ19.05） | |
| Max. pipe length | m | 50 | ||
| Max. difference in level | m | 20 | ||
| Ambient temp | COOLING | °C | 18-50 | |
| Operation temp | °C | 16~32 | ||
| Application area | m2 | 140-187 | ||
